For 3D modeling of the RC22 PV reference cell in your installation, please use the STEP model in the attached .STEP file.

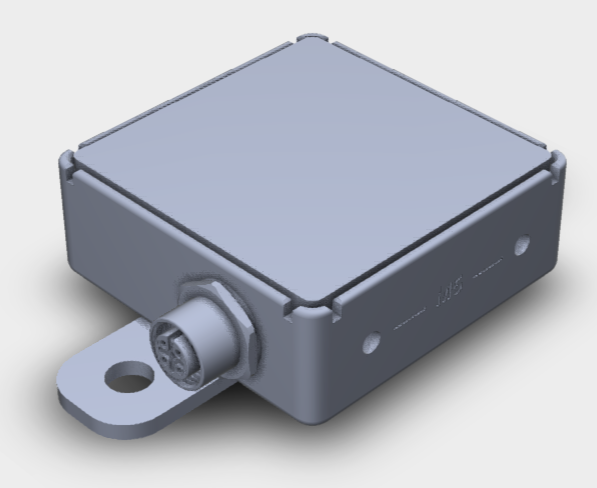

Attached file 810290-01 RC22.STEP shows the RC22 with its standard 2-hole mounting bracket (see RC22 mounting solutions or RC22 User Guide). Other mounting solutions, including torque tube and rear-side mounting brackets, are available. See RC22 mounting solutions.
For a model that shows RC22 mounted to the Mars™ Soiling Sensor for improved irradiance measurement accuracy without cleaning, see Mars™ Soiling Sensor 3D .STEP Models
